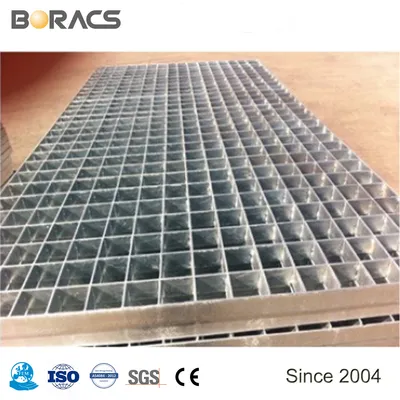

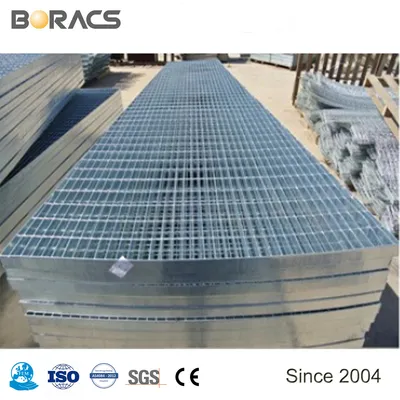

Steel Grating is an essential structural component of many builds, particularly in commercial and industrial spaces. Steel Grating is specifically designed for high impact, high load applications, such as in walkways, stairs, platforms, and mezzanines. Steel grating is safer, will last longer, and will look better than any other underfoot options for industrial and commercial spaces.
Please get in touch if you are in need of steel grating.


Standard Specification(mm)
NO.	Bearing bar spacing	Cross bar spacing	Specification of bearing bars (Width x thickness)
			20x3	25x3	32x3	40x3	20x5	25x5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
		50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
1	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
		50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
NO.	Bearing bar spacing	Cross bar spacing	Specification of bearing bars (Width x thickness)
			32x5	40x5	45x5	50x5	55x5	60x5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
		50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
1	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
		50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50



BORACS is a racking systems manufacturer 100% owned by Singaporean. Our China factory was established in 2004 in Shanghai and moved to Nanjing in 2009. BORACS specialises in international export market. Over the years, we have installations in over 30 countries, some of them shipped to end customers' warehouse, mostly are installed by our resellers around the world.

BORACS strives to serve our clients and resellers with quality products, competitive prices and prompt services, thus keeping all our resellers onboard BORACS family since the first day they joined us. We conduct regular Tensile and Yield Strength tests to ensure that only the best qualified materials are used. Our Selective and Cantilever racks are subjected to rigorous tests compliance with European FEM and Australian Standards.
