Basic Info.
Model NO.
low carbon mild steel grating
Surface
HDG
Galvanized Standard
ASTM A123
Transport Package
Bundle by Steel Belt
Specification
All
Trademark
LIHONG
Origin
China
HS Code
7308900000
Production Capacity
50ton /Days
Product Description

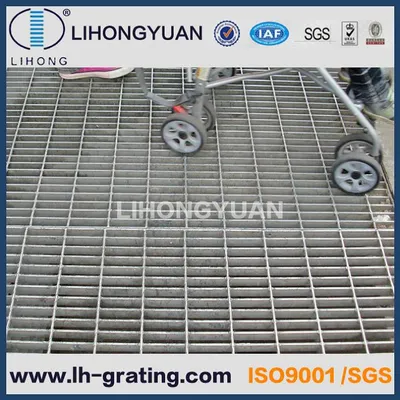

galvanized low carbon mild steel grating for floor

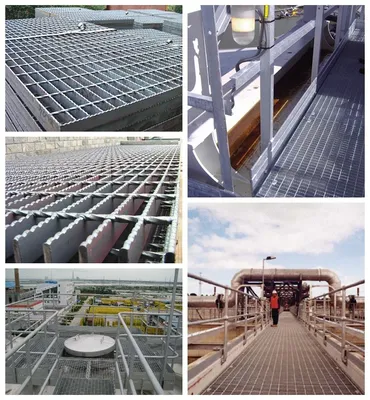

"LIHONG" brand steel grating is widely used in road, square, garden, dock, airport, railway, and other city construction projects.
Ningbo Lihongyuan Steel Grating Co., Ltd is a professional manufacturer in the field of steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Ningbo Lihongyuan is your right partner for purchasing & developing quality goods in China.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
Quick Guide to Choosing the Right Flooring
"LIHONG" brand steel grating is widely used in road, square, garden, dock, airport, railway, and other city construction projects.
Ningbo Lihongyuan Steel Grating Co., Ltd is a professional manufacturer in the field of steel grating,stair treads,trench cover,steel fence,etc.We have 3 running lines with yearly capacity of 15, 000tons.Our grating has exported to more than 30 countries,including AU,Europe,Southeast Asia,Africa,Middle East,etc.We always stick to manufacturing good quality products for our valuable customers worldwide.For sure,Ningbo Lihongyuan is your right partner for purchasing & developing quality goods in China.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
Quick Guide to Choosing the Right Flooring
| Load 3kPa/Deflection 5mm | Load 4kPa/Deflection 5mm | Load 5kPa/Deflection5mm | |||
| Span(mm) | Steel Grating Type | Span(mm) | Steel Grating Type | Span(mm) | Steel Grating Type |
| 1500 | G255/30/100 | 1400 | G255/30/100 | 1200 | G255/40/100 |
| 1800 | G325/30/100 | 1710 | G325/30/100 | 1500 | G325/40/100 |
| 2100 | G405/30/100 | 1780 | G403/30/100 | 1800 | G405/30/100 |
| 2400 | G505/30/100 | 2030 | G405/30/100 | 2100 | G505/30/100 |
| 2800 | G655/30/100 | 2350 | G505/30/100 | 2400 | G655/30/100 |
| 2400 | G655/30/100 | 2800 | G756/30/100 | ||
